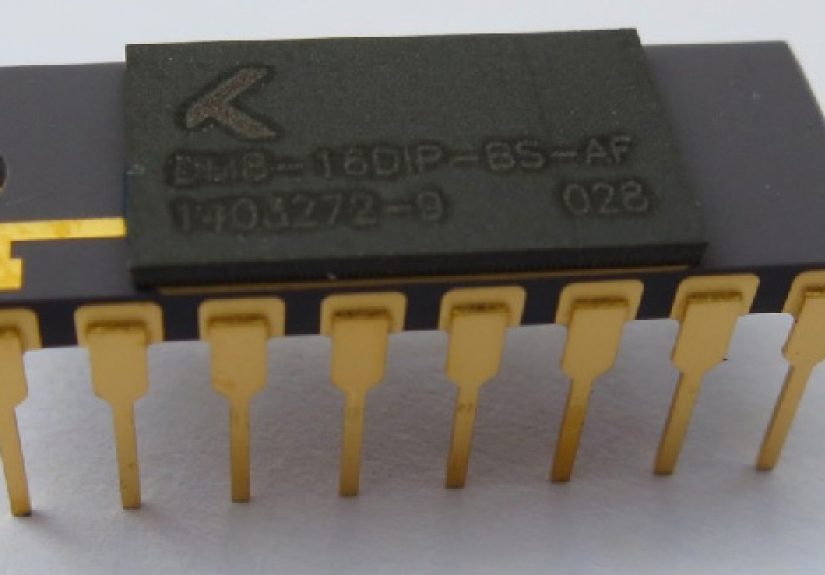

Modern AI has a weird hobby: it spends a shocking amount of time moving numbers around. The math is fast, but shuttling
weights back and forth between memory and compute can be the real energy drain. Memristors show up in this story as the “what if we
stopped commuting?” optiondevices that can both store a value (as conductance) and participate in the compute
(as current) so the weights don’t have to leave home to be useful.
If you’ve heard memristors described as “artificial synapses,” that’s not just marketing sparkle. Many memristive devices naturally behave
like tunable resistors with historyexactly the vibe you want for neuromorphic and in-memory computing. But “building memristors for neural
nets” isn’t one single project. It’s a stack of decisions: device type, array architecture, programming strategy, peripheral circuits, and the
unglamorous reality of variation, noise, and drift.
What Is a Memristor, Really?
In circuit theory, the memristor was proposed as a fundamental two-terminal element relating charge and flux linkageoften introduced as the
“fourth” passive element alongside the resistor, capacitor, and inductor. In practice today, the word memristor is frequently used
as an umbrella term for memristive devices: components whose resistance (or conductance) can be changed and retained, often through
ionic motion or phase changes in a thin material stack.
A famous milestone was the 2008 demonstration by HP Labs researchers showing memristive behavior arising in nanoscale systems where ionic and electronic
transport are coupled. That work helped kick off a wave of research into resistive switching memories and their use beyond storageespecially for
computation directly inside memory structures.
Why Neural Nets Keep “Adopting” Memristors
Neural networks are dominated by multiply–accumulate (MAC) operations. In a digital chip, that means repeatedly pulling weights from memory, multiplying,
and accumulating. A memristor crossbar array can perform a close cousin of that operation using physics:
- Ohm’s law: current through a device is proportional to conductance × voltage.
- Kirchhoff’s current law: currents from many devices sum naturally on a wire.
Put those together and a crossbar can implement vector–matrix multiplication in the analog domain: apply voltages representing inputs across
rows; read out summed currents on columns; interpret those currents as the dot products you need for a layer of a neural net. This “in-memory computing”
approach is attractive because it reduces data movement and can be highly energy efficientespecially for inference, and potentially for training when
weight updates are supported in hardware.
The Memristor “Family Tree” Used in AI Hardware
When people say “memristor,” they may mean one of several device technologies that share the key feature: programmable, nonvolatile (or semi-nonvolatile)
conductance states. Common families include:
Resistive RAM (ReRAM / RRAM)
RRAM devices typically use a metal–insulator–metal stack where resistive switching changes conductanceoften through formation/rupture of conductive
filaments or more distributed mechanisms depending on materials. RRAM is popular in research prototypes for crossbar-based computing because it can be
scaled and integrated into dense arrays.
Phase-Change Memory (PCM)
PCM uses materials (often chalcogenides) that switch between amorphous and crystalline states, changing resistance. PCM is frequently explored for
neuromorphic synapses because it can represent analog-ish conductance levels and supports certain update behaviors, though drift and nonlinearity
become design constraints.
Electrochemical / Conductive-Bridge Memories
Some devices rely on ion migration that creates or dissolves conductive paths. These can offer interesting analog properties but also bring their own
endurance and variability quirks.
Ferroelectric and Other Emerging Options
Ferroelectric devices (and other emerging memories) can also support in-memory compute concepts, sometimes with different tradeoffs in speed, retention,
and linearity. In practice, “best” depends on the neural net, the required precision, and the system budget for calibration and conversion.
From Device to Neural-Net Tile: What “Building” Usually Means
Unless you’re in a university or industrial lab with cleanroom access, you’re not literally depositing thin films and patterning nanoscale electrodes
in your garage (and you definitely shouldn’t try). In the neuromorphic hardware world, “building” often means architecting and validating a stack that
turns memristive physics into reliable neural-net math.
1) The Device Stack (High-Level, Not a Recipe)
Most memristive devices used for crossbars resemble a sandwich: electrode / switching layer / electrode. The switching layer is often an oxide or phase-change
material. The device is programmed by applying electrical pulses that move ions, change defects, or alter a phaseshifting conductance up or down.
Key device-level questions that matter for neural nets:
- Conductance range: How wide is the usable window between “low” and “high” conductance?
- Analog programmability: Can you set many stable intermediate states, or is it essentially binary?
- Update symmetry: Are “increase” and “decrease” steps similarly controllable?
- Endurance & retention: How many updates before wear-out, and how long states remain valid?
- Variability: How different are devices from each other, and how noisy are updates over time?
2) The Crossbar Array (Where the Math Happens)
A crossbar is a grid of intersecting metal lines with a memristive device at each intersection. If each device stores a weight (as conductance),
the array can compute dot products by applying input voltages and reading output currents.
Real arrays, however, are not ideal math notebooks. They contain:
- Line resistance: Wires drop voltage along the way, causing errors that grow with array size.
- Sneak paths: Unwanted current routes through neighboring cells can corrupt reads/writes.
- Selectors or access devices: Many designs pair each memory element with a transistor (1T1R) or selector device (1S1R) to reduce sneak paths.
“1T1R” (one transistor, one resistive element) improves controllability but reduces density. “1R” is denser but often needs clever circuit techniques,
selectors, and careful biasing to keep sneak paths from turning your neural net into abstract art.
3) Peripheral Circuits: The Part Everyone Forgets to Budget For
Analog in-memory computing isn’t “pure analog.” Neural nets live in a mixed-signal world:
- DACs (digital-to-analog converters) or pulse-width schemes to apply inputs as voltages/currents.
- ADCs (analog-to-digital converters) to digitize output currents for the next layer or system interface.
- Sensing and reference circuitry for accurate reads across temperature and process variation.
- Write drivers and verify loops to program conductance to target values.
In many realistic designs, DAC/ADC energy and area can dominate if you chase high precision. That’s why so much research focuses on
“good enough” precision plus calibration, rather than perfect analog accuracy.
Encoding Neural-Net Weights in Conductance
Signed Weights: The “Two-Device” Trick
Conductance is naturally nonnegative, but neural nets want positive and negative weights. A common approach is a differential pair:
represent a signed weight as G+ and G-, and interpret the effective weight as (G+ − G-). This costs 2× devices
but makes arithmetic cleaner and reduces certain bias errors.
Precision: Your Neural Net Doesn’t Need a PhD in Analog
Many successful deployments rely on low-bit or mid-bit effective precision (often helped by retraining, quantization-aware training, or noise-aware training).
You can also use bit-slicing, where multiple devices (or multiple columns) represent different significance bits of a weight, then combine
outputs digitally.
Programming Strategy: “Set It Once” vs “Learn on the Array”
There are two big modes:
- Offline training + program: Train a model digitally, then program the array to match the learned weights (with verify-and-adjust loops).
- On-chip training: Update conductances during training, which is harder because devices have nonlinear and state-dependent update behavior.
Recent work from industry labs has shown progress toward both inference and training using analog memory devices (including ReRAM variants), but doing this
reliably requires co-design across devices, circuits, and learning algorithms.
The Hard Parts (A.K.A. Why This Field Is Still Exciting)
If memristor crossbars are so elegant, why aren’t laptops full of them? Because the devil lives in the analog details, and the devil brought friends:
Device Variability and Nonlinear Updates
In many resistive memories, the same programming pulse does not always produce the same conductance change. Updates can depend on the current state, temperature,
history, and device-to-device differences. This matters most for training, where small, consistent weight updates are essential.
Drift, Retention, and Time
Some devices drift: conductance slowly changes even without updates. That’s a manageable problem if the system expects it (refresh, periodic recalibration, or
encoding schemes), but it’s a problem if you pretend it doesn’t exist.
Sneak Paths, IR Drop, and Array Scaling
As arrays scale up, line resistance and unwanted current paths become more severe. This pushes designers toward access devices, selectors, tiled architectures,
and algorithmic compensation (e.g., training with modeled hardware errors).
ADC/DAC Overheads
The analog core may be efficient, but conversions can be expensive. System-level performance depends on the whole pipeline: dataflow, tiling, conversion strategy,
and how much precision you truly need to preserve accuracy.
A Concrete Mental Model: One Layer, One Crossbar
Imagine a fully connected layer with weight matrix W. In a crossbar:
- Each column corresponds to an output neuron.
- Each row corresponds to an input feature.
- Each cross-point stores a conductance proportional to a weight value.
Apply an input vector as voltages across the rows. Each cross-point produces a current proportional to input × conductance. Currents sum on each column,
producing an analog output proportional to the dot product for that neuron. Then:
- Optionally apply scaling/normalization.
- Digitize outputs (or feed into another analog stage).
- Apply activation (digital or analog).
This is the “physics does the MAC” pitch in one paragraphand it’s why memristor crossbars are such a magnet for neural-net accelerators.
Real-World Proof Points (Without the Hype Goggles)
Multiple US research ecosystems have pushed this field forward:
- National labs and government research have examined memristors as candidates for neuromorphic computing and explored modeling, switching mechanisms,
and reliability questions that matter for analog learning systems. - University programs have showcased memristive crossbar arrays as analog in-memory computing engines for vector–matrix multiplication, emphasizing
system integration with CMOS. - Industry labs have published results on analog memory technologies (including ReRAM variants) aimed at accelerating inference and, increasingly,
trainingwhere accurate small updates are the name of the game. - Recent peer-reviewed work continues to address a critical bottleneck: programming large arrays to high-precision analog statesbecause “it’s analog”
is only helpful if it’s also controllable.
Taken together, the message is consistent: memristor-based neural computing is less about one magical device and more about co-designaligning
learning algorithms with the real behavior of devices, circuits, and interconnects.
So… Can You “Build” Memristors for Neural Nets Without a Cleanroom?
You can build the neural-net stack around memristors without fabricating devices yourself. The most practical paths look like this:
Model-First: Simulate the Hardware, Then Train for It
Many teams start with compact device models (capturing nonlinearity, stochasticity, and limits) and run hardware-aware training. You learn early whether your
network can tolerate the imperfectionsbefore you commit to an array architecture.
Prototype the Array Behavior at System Level
Even with an “ideal crossbar,” you still need to design around ADC/DAC precision, throughput limits, tiling strategy, and calibration. A strong prototype
answers questions like: how often does calibration run, how much accuracy is lost at low precision, and where does energy actually go?
Partner or Leverage Published Demonstrators
Most physical memristor neural-net demos live in research labs. When teams outside fabrication environments work on this field, they often collaborate with
universities or labs, or they build on published chips and measured device datasets to validate learning pipelines.
Where Memristor Neural Nets Are Heading Next
The near-term future looks hybrid:
- Tiled analog cores for dense MAC operations, wrapped by digital control for flexibility.
- Better programming and verification methods to push analog precision without exploding write time.
- Algorithmic robustness (quantization/noise-aware training) baked into model design.
- 3D integration and advanced interconnect to reduce parasitics and improve scaling.
In other words, memristors won’t replace GPUs overnight. But they can become specialized engines where matrix math dominates and energy budgets are tightedge AI,
always-on sensing, and certain training scenarios where the memory wall hurts the most.
Field Notes: of “Experience” Engineers Keep Re-Learning
Talk to people who actually work on memristor neural-net prototypes and you’ll hear the same “bench truths” over and overusually right after someone says,
“It worked in simulation.” Here are the experiences that show up in real projects, phrased as lessons rather than war stories.
First: expect the array to behave like a living ecosystem, not a spreadsheet. Even if every device is “the same” on paper, measured conductance
distributions spread out. A practical workflow treats device variation as a design input: build calibration hooks, track drift, and assume some cells will be
outliers. This is why differential weight encoding and redundancy are so popularbecause they give you knobs to absorb imperfections without rewriting physics.
Second: programming is a product, not a step. In many prototypes, a weight isn’t just “set.” It’s set, verified, nudged, verified again, and
sometimes re-mapped if a device lands in a stubborn region. Teams learn quickly that “write latency” matters: if programming a matrix takes too long, the whole
accelerator can be fast but still feel slow in practice. That’s why so much effort goes into efficient verify-and-adjust loops and smarter target selection
(for example, choosing weight encodings that avoid the most nonlinear parts of the conductance curve).
Third: the ADC/DAC budget can ambush you. Early prototypes often celebrate the analog core’s efficiency and then discover the conversion circuitry
is eating luncharea, power, or both. Experienced designers respond by lowering precision where it doesn’t matter (or using time/pulse encoding), and by pushing
more work into the analog domain only when it truly reduces end-to-end energy. The best teams measure full-system energy early, not as a final slide.
Fourth: algorithm–hardware co-design is not optional. When device updates are nonlinear or state-dependent, naive training rules can fail. A common
“aha” moment is realizing the learning rule must be written for the device, not the other way around. That can mean using hardware-aware training, adding noise
during training, constraining weight ranges, or adopting update schemes that match the device’s natural behavior. In practice, this is where many breakthroughs
happen: not from a perfect device, but from a learning pipeline that stays accurate while the hardware stays realistic.
Finally: success often looks boring. The winning prototype is not the one with the flashiest single-device plot; it’s the one that runs stable
across many cycles, many tiles, and many environmental conditionsthen still hits accuracy targets. Engineers in this space become surprisingly fond of phrases
like “guard bands,” “recalibration cadence,” and “error budgeting,” because those are the tools that turn memristors from science-fair miracles into computing
blocks a neural net can trust.
Conclusion
Building memristors for neural nets is really about building a reliable analog learning machine out of devices that are, by nature, a little wild.
Memristive crossbar arrays offer an elegant way to do neural network math where the weights livereducing data movement and potentially slashing energy.
But the payoff comes only when the entire stack is engineered: device behavior, array architecture, programming strategy, mixed-signal peripherals, and
training methods designed for non-ideal reality.
If that sounds like a lot, it is. But it’s also why this field stays fun: it’s one of the rare places where materials science, circuit design, and machine learning
meet at the same lab benchand all three get a vote.
