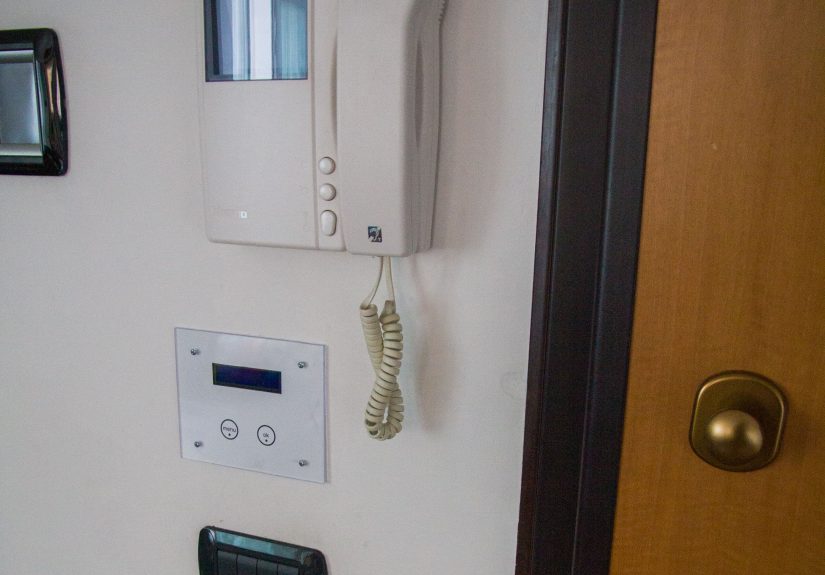

Arduino-Powered Alarm System Has All The Bells And Whistles

Some people buy a security system. Other people build onebecause nothing says “I value peace and quiet” like wiring a microcontroller to a siren loud enough to make the neighborhood group chat light up. An Arduino-powered alarm system is the sweet spot between weekend DIY joy and genuinely useful home protection: you can start with a basic motion alarm, then keep adding “bells and whistles” until your setup feels like it should come with its own theme music.

This guide walks through how to design a feature-rich DIY home security system with Arduino that’s practical, scalable, and not held together by hope and hot glue (well… not only hope and hot glue). We’ll cover sensor choices, alert options (Wi-Fi, GSM/SMS, dashboards), false-alarm prevention, and the security basics that keep your smart alarm from becoming a smart liability.

What “All The Bells And Whistles” Really Means (Besides the Actual Siren)

In a pro-grade system, “bells and whistles” isn’t just a louder buzzer. It’s layered detection, solid UX, and reliability: door/window sensors, motion sensing, tamper alerts, arming delays, a keypad or RFID, remote notifications, logging, and a sane plan for power outages. Arduino makes this modular: build a dependable core, then bolt on upgrades like you’re customizing a race carexcept the race is against raccoons, drafty windows, and your cat’s midnight parkour routine.

The Core Architecture: Think “Panel + Zones”

The easiest way to keep your project from turning into a spaghetti-firmware situation is to borrow a concept from commercial alarms: a central controller (“panel”) that monitors “zones” (doors, windows, rooms). Each zone is a sensor (or a group of sensors) with a simple state: normal, triggered, tampered, or faulted.

Suggested building blocks

• Controller: Arduino Uno/Nano for basics, or a Wi-Fi capable board (e.g., Arduino Nano 33 IoT / ESP8266/ESP32 as a companion).
• Inputs (zones): magnetic reed switches, PIR motion sensors, IR break-beams, vibration sensors, optional glass-break mic modules.
• Outputs: siren/buzzer, status LEDs, strobe, relay for a louder external alarm, optional camera trigger.
• UX: keypad, capacitive touch button, RFID reader, or a phone-based dashboard.
• Comms: MQTT/Wi-Fi dashboard, email, SMS/call via GSM module, or local notifications.

Sensors That Do The Actual Detecting

1) PIR motion sensors (the “someone moved” classic)

PIR sensors are popular for a reason: they’re inexpensive, low power, and dead simple to interface. Most hobby PIR modules give you a digital HIGH/LOW outputmotion equals “HIGH,” no motion equals “LOW.” They typically include sensitivity and timeout adjustments and often a retriggering mode so they can keep firing while motion continues.

Pro tip: Treat PIR as “presence-ish,” not “proof of intrusion.” Use it as a second layer behind a door sensor or as a trigger for escalation (e.g., start recording, turn on lights, send an alert).

2) Magnetic reed switches (doors and windows, no drama)

A reed switch plus magnet is the simplest “perimeter” sensor you can build. When the door is closed, the magnet keeps the switch in one state; when it opens, the state changes. Wire it to a digital pin with a pull-up or pull-down and you’ve got an instant “zone” that’s reliable and easy to debug.

Pro tip: Add a short debounce period (like 20–50 ms) so a wiggly door doesn’t spam your alarm logic.

3) IR obstacle/break-beam sensing (the “laser tripwire” vibe, but friendlier)

If you want a hallway trip line or a “someone crossed this line” sensor, an IR LED + receiver pair can do the job. Many IR receivers ignore constant signals, so pulsing the LED and checking for the pulse is a common pattern. It’s a neat way to reduce false triggers from sunlight and random IR noise.

4) Bonus sensors for extra whistles

• Tamper switch: a simple micro-switch inside the enclosure that triggers if someone opens the box.
• Vibration/tilt: great for safes, drawers, or “don’t touch my toolbox” energy.
• Presence-grade IR sensors: newer modules can be more nuanced than classic PIR for “still person” detection.

Outputs: Make Noise, Make Light, Make It Obvious

The satisfying part of any alarm build is the moment it actually alarms. A piezo buzzer is fine for testing, but for a real system you’ll often want a louder siren, a strobe, or both. The catch: you generally shouldn’t drive larger buzzers/sirens directly from a microcontroller pin. Use a transistor or MOSFET driver, and add a diode where needed for inductive loads (like relay coils).

Escalation logic (because not every trigger deserves DEFCON 1)

A smart Arduino alarm doesn’t go full banshee immediately. Consider stages:

1. Chime: door opened while disarmed (friendly beep).
2. Warning: entry delay while armed (beeps + countdown).
3. Alarm: siren + notifications + logging + optional camera trigger.

Arming, Disarming, And Not Locking Yourself Out Like a Sitcom Character

Keypad control

A keypad gives you the classic alarm-panel feel: arm stay, arm away, disarm, panic. Pair it with a small display (LCD/OLED), and suddenly your project looks suspiciously “store-bought.” Add a short entry delay so you can walk in and disarm without setting off the soundtrack to your embarrassment.

RFID / key fob

RFID is fast and family-friendly: tap to arm/disarm. It’s also easy to build role-based behavior (“kids can disarm, but can’t change settings”) if you store authorized tag IDs securely.

Capacitive touch

Want a stealthy “arm” button that looks like modern consumer electronics? Capacitive touch inputs can add a slick interface with fewer moving parts than a buttonhandy for a clean wall-mount build.

Connectivity: Local First, Cloud Optional, Panic Always Available

Wi-Fi dashboards and MQTT

If you use a Wi-Fi capable board (or an ESP8266/ESP32 companion), you can publish zone states to an MQTT broker and visualize everything on a dashboard. That opens the door (pun fully intended) to Home Assistant automations, historical logs, and push notifications.

Email alerts

A simple approach is letting the Arduino report events to a computer or service that sends email. It’s not the fastest alert channel, but it’s great for “FYI” events and for learning how to pass messages cleanly from device to network.

GSM/SMS alerts (when Wi-Fi can’t be trusted)

Cellular modules like SIM800L-class boards can send SMS or place calls. For security systems, that’s a big deal: if the power blips or the router reboots at the worst possible time (routers have impeccable comedic timing), cellular can keep your alert path alive.

Reliability: How To Reduce False Alarms (And Keep Friends)

False alarms are the fastest way to turn a clever Arduino home security system into a very expensive noisemaker that everyone ignores. Most false alarms come from three places: noisy sensors, messy logic, and environmental chaos.

Use “sensor fusion” instead of “sensor panic”

A practical pattern is: door opens → start entry timer → confirm with PIR motion → escalate. Or: PIR triggers → check if door was opened recently → escalate only if correlated. You’ll get fewer alarms from pets, HVAC drafts, or a curtain doing dramatic interpretive dance.

Add warm-up and settle times

PIR sensors often need a short warm-up on power-up. Many modules also let you tune sensitivity and timeout. Build a startup delay so you’re not alarming because the sensor is still “waking up.”

Log first, judge later

Add serial logs (during development) and persistent logs (SD card or EEPROM summaries) for real deployments. If you can see which zone triggered and when, debugging goes from “haunted house” to “oh, that window is loose.”

Security & Privacy: Don’t Build An Alarm That’s Easier To Hack Than Your Front Door

If your alarm system connects to Wi-Fi, it becomes an IoT deviceand IoT security basics apply. That means thinking about authentication, safe configuration, protecting stored data, and managing updates. Even for a DIY build, adopting a baseline mindset keeps you from accidentally creating a device that announces your schedule to anyone with a packet sniffer.

Practical security checklist for a DIY Arduino alarm

• Strong credentials: no default passwords, no “1234,” no “password,” and no “password1” (nice try).
• Least privilege: admin functions separated from everyday disarm actions where possible.
• Protect data: don’t store secrets in plain text if you can avoid it; limit what you log and where it lives.
• Safe configuration: if settings can be changed, require authorization to change them.
• Network hygiene: keep Wi-Fi secured, and avoid exposing your device directly to the internet.

A Concrete Example Build: “Perimeter + Motion + Smart Alerts”

Here’s a practical mid-level blueprint that feels feature-rich without becoming a semester-long firmware project:

Hardware

• Controller: Arduino (for zone logic) + Wi-Fi module/board for messaging (or a single Wi-Fi-capable MCU).
• Zones: 2–6 reed switches (doors/windows), 1–2 PIR sensors (hallway/living room).
• UX: keypad (or RFID), plus status LEDs (armed, ready, alarm).
• Alarm output: siren via transistor/MOSFET driver, optional relay for a higher-power siren.
• Power: stable supply + battery backup if you want real resilience.

Behavior

1. Ready state: all perimeter zones closed → “Ready” LED on.
2. Arm away: exit delay (30–60 seconds) → perimeter + motion active.
3. Entry delay: door opens → countdown beeps → disarm required.
4. Alarm: if countdown ends or motion confirms intrusion → siren + alert + log.
5. Post-alarm: latch state until authorized reset; don’t silently “forget” an alarm happened.

Testing: The Unsexy Part That Makes Everything Work

Test each zone in isolation first. Then test sequences: arm → exit delay → trigger a door → disarm. After that, try the “real” edge cases: open the door slowly, jiggle the window, wave in front of the PIR at different distances, and see what your logic does when two zones trigger at nearly the same time.

Failure-mode tests worth doing

• Power loss: does it reboot safely, or does it come up “armed and angry”?
• Network loss: do local alarms still work if Wi-Fi drops?
• Sensor fault: what happens if a wire breaks or a switch fails?

Upgrades That Feel Like Cheating (In A Good Way)

1) Camera trigger on motion

Use motion as a trigger to capture images or start recording. Even a basic “snap on motion” flow makes alerts far more useful than “something happened somewhere, good luck.”

2) Silent alarm mode

Sometimes you want notifications without noiselike when you’re traveling, or when you’d prefer not to wake the entire street because a cardboard box shifted slightly. Build a “silent alert” mode that sends messages and logs events but only chirps locally.

3) Better presence detection

Standard PIR is great, but newer presence-focused IR sensors can add nuance. If you want “someone is still in the room” rather than “someone moved,” this is where you level up.

Conclusion: Build It Smart, Not Just Loud

The magic of an Arduino-powered alarm system isn’t that it can scream (it definitely can). It’s that you can tailor it to your space and your life: door sensors where you need them, motion sensing where it makes sense, and alerts that reach you even when your Wi-Fi is having one of its dramatic episodes.

Start small: one reed switch, one PIR, one buzzer. Then add the bells and whistles that matterkeypad entry delay, a proper driver for the siren, event logs, and secure remote notifications. Before you know it, you’ll have a DIY security system that’s not only functional, but genuinely satisfying to use… and only occasionally terrifying.

Field Notes: Common Real-World Build Experiences (And What You’ll Learn)

Building an Arduino alarm system tends to follow a predictable emotional arc. First comes optimism: “It’s just a sensor and a buzzer.” Then reality shows up with a clipboard and asks if you’ve considered electrical noise, door bounce, Wi-Fi dropouts, and the fact that your cat is basically a furry penetration tester. The good news is that the “messy middle” is where you gain the skills that make the final system feel professional.

One of the first experiences most builders have is the PIR surprise: you power the sensor and it triggers a few times for no obvious reason. That’s usually warm-up behavior and environmental changes (HVAC airflow, heat sources, sunlight). The fix is rarely complicatedgive it a startup settle timer, tune sensitivity, and avoid pointing it at sunny windows or heat vents. You also learn quickly that PIR is great at “motion happened,” but not great at “how many people” or “how close,” which is why combining it with door sensors feels like an upgrade you didn’t know you needed.

Next comes the reed switch reality check. On paper, a door sensor is binary: open or closed. In real life, doors wobble, frames flex, and magnets drift. The classic symptom is rapid-fire triggers when the door closes. Adding a tiny debounce window, checking for “stable state for X milliseconds,” and mounting the magnet carefully turns a noisy zone into a trustworthy one. This is also where you learn cable managementbecause a sensor that works until you shut the door is not a sensor, it’s a prank.

Another milestone is discovering that “loud” often means “needs a driver.” A little piezo buzzer might run directly from a pin, but a siren, relay, or high-output buzzer will usually demand a transistor or MOSFET and a sensible power path. The first time you switch from “tiny beep” to “actual alarm,” your project goes from classroom demo to something that could wake a teenager. That’s also when you start thinking about enclosures, strain relief, and how to keep wires from turning into accidental antennas.

If you add networking, you’ll eventually experience the router reboot of destiny: everything works perfectly until the Wi-Fi hiccups. The lesson is to design “local-first.” Your alarm should still chirp, log, and respond even if the internet vanishes. Remote alerts are an add-on, not the foundation. Builders who add GSM/SMS often describe it as the most satisfying redundancy: it’s the difference between “I hope my notification arrives” and “my system has a backup plan.”

Finally, you’ll learn that the best feature isn’t the sirenit’s the user experience. Entry delays, clear status lights, a calm “armed/ready” indicator, and a simple disarm flow prevent accidental alarms and make the system pleasant to live with. By the end, you’re not just building a gadget; you’re designing behavior. And once you’ve done that, adding more zones, a dashboard, or smarter logic stops being intimidating. It becomes your new favorite hobby: turning real-world chaos into clean, reliable states.
